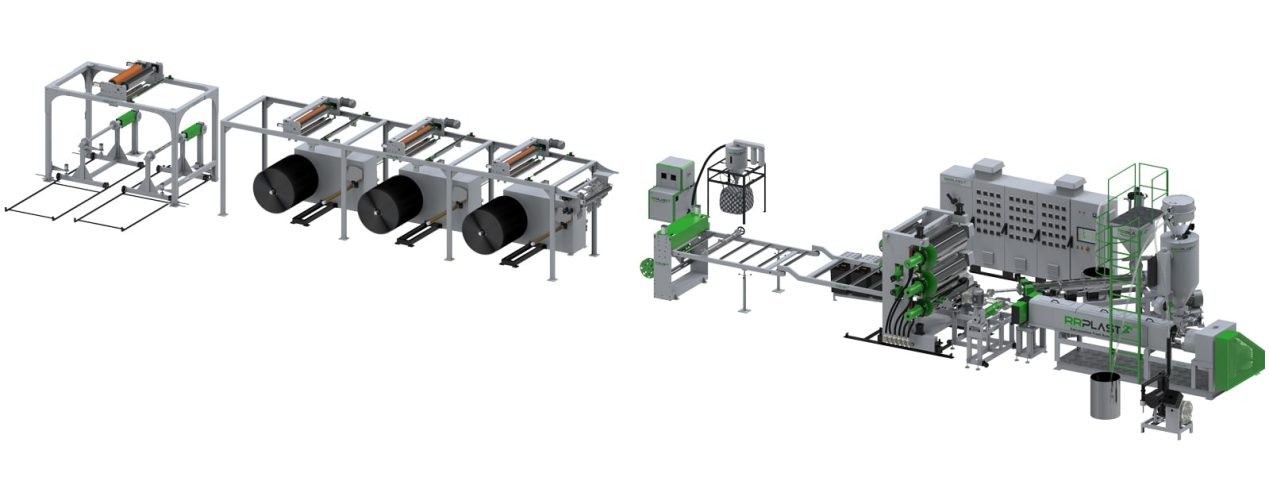

PP, PS ECO-EFFICIENT SHEET EXTRUSION LINE
"SMALL FOOTPRINT - BIG OUTPUT”
RR Plast developed Eco-efficient single screw extrusion line to save Power, Space, Less residential time.
Unique features: –

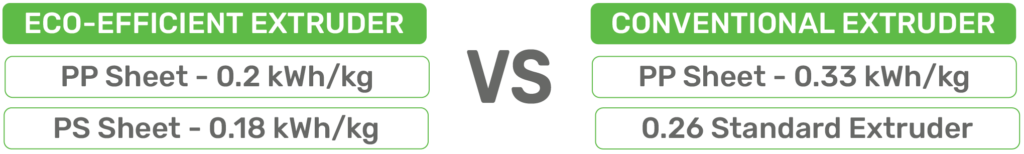

- 50% Power saving than the standard extruder
- 50% Space saving
- 50% Material residential time in extruder
ENERGY SAVING
EFFICIENT
ECONOMICAL
Main Technical Parameters
| Model | Unit | 65/33-1000 | 75/33-1000 | 90/33-1000 |
| Thickness | mm | 0.3-2 | 0.3-2 | 0.3-2 |
| Sheet Width | cm | 70-90 | 70-90 | 70-90 |
| Main Motor | kWh | 75 | 110 | 160 |
| Output (PP) | kg/hr | 300-400 | 500-600 | 700-800 |
| Output (HIPS) | kg/hr | 400-500 | 600 | 800 |
| Model | Unit | 65/33-1000 | 75/33-1000 | 90/33-1000 |
| Thickness | mm | 0.3-2 | 0.3-2 | 0.3-2 |
| Sheet Width | cm | 70-90 | 70-90 | 70-90 |
| Main Motor | kWh | 75 | 110 | 160 |
| Output (PP) | kg/hr | 300-400 | 500-600 | 700-800 |
| Output (HIPS) | kg/hr | 400-500 | 600 | 800 |
Note: The specification is subject to change without prior notice.
Applications
