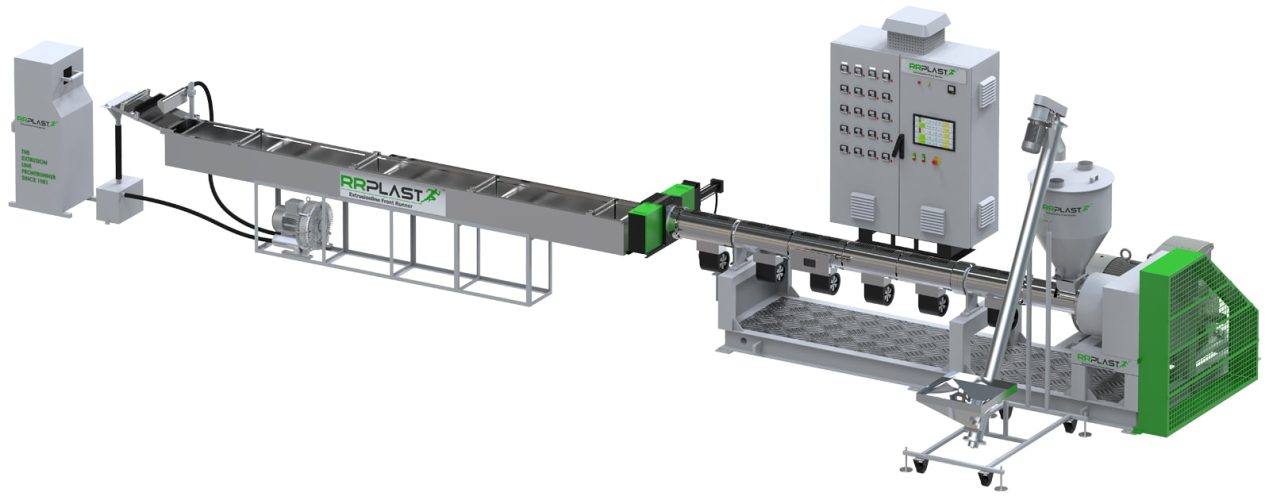

SINGLE STAGE VENTED RECYCLING PLANT
WITH STRAND PELLETIZER DIE FACE CUTTING SYSTEM
SINGLE STAGE VENTED RECYCLING PLANT
WITH STRAND PELLETIZER DIE FACE CUTTING SYSTEM
Features
- Vented Extruder.
- Hydraulic screen changer with pressure alarm.
- AC drive control for power saving.
Recommended for
- Article waste.
- Agglomerated material.
- In-house factory waste.
- Pipe waste like drip/HDPE
| Technical Specifications | |||||||
| Model | O/P (kg/hr) | Screw Dia (mm) | L/D Ratio | Main Motor (KW) | Rotory Pelletizer | Heating Load (KW) | |
| Roto Width | Motor (KW) | ||||||
| RRRP-90/35V | 160-220 | 90 | 35:1 | 45 | 6 | 1.5 | 36 |
| RRRP-100/35V | 200-250 | 100 | 35:1 | 55 | 6 | 2.25 | 42 |
| RRRP-120/35V | 300-400 | 120 | 35:1 | 90 | 6 | 3.75 | 49 |
| RRRP-150/35V | 400-500 | 150 | 35:1 | 110 | 6 | 5.5 | 55 |
| Technical Specifications | ||
| Model | O/P (cuts/min) | Connected Power |
| RRPP-50/25/25 (Three color) | 80-100 cuts/min – D/F Pen Barrel | 40 Kw |
| 200-250 cuts/min – Polo Barrel | ||
| RRPP-50 (single color) | 300-500 cuts/min – Refill | 40 Kw |
| 700-1000 cuts/min – Lollypop stick | ||
Note: The specification is subject to change without prior notice.
Plastic Recycling Materials
Applications
